Slip model of the 2020 Sumatra earthquake doublet

Earthquake Parameter (Links):

2020-08-18 22:23:59 UTC Mw 6.8 [BMKG Initial] [USGS] [Geofon GFZ] [Global CMT] [Scardec Geoscope] [EMSC] [Early-est] [IRIS Wilber 3] [IRIS Event Page] [ISC Event Page] [BMKG Repo]

2020-08-18 22:29:24 UTC Mw 6.9 [BMKG Initial] [USGS] [Geofon GFZ] [Global CMT] [Scardec Geoscope] [EMSC] [Early-est] [IRIS Wilber 3] [IRIS Event Page] [ISC Event Page] [BMKG Repo]

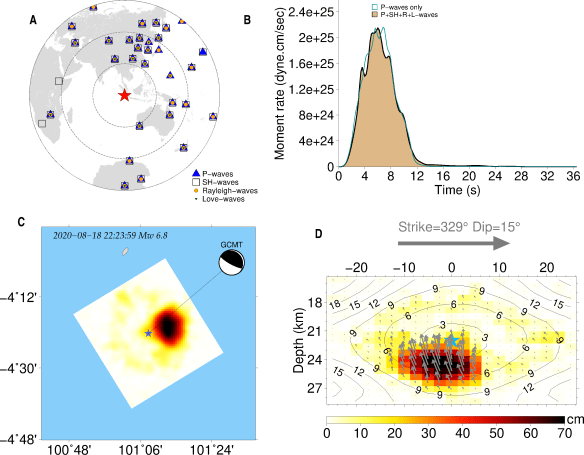

Preliminary Finite Fault Model of the 1st Event:

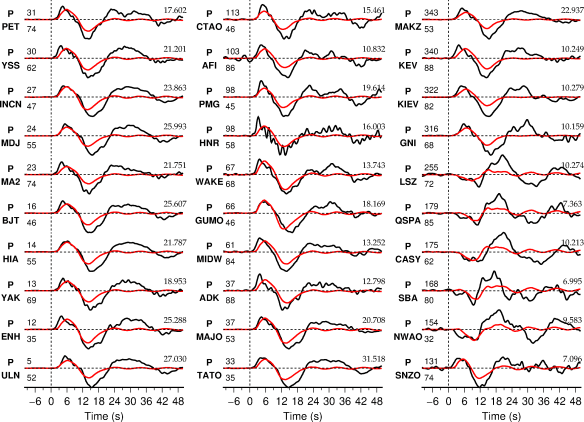

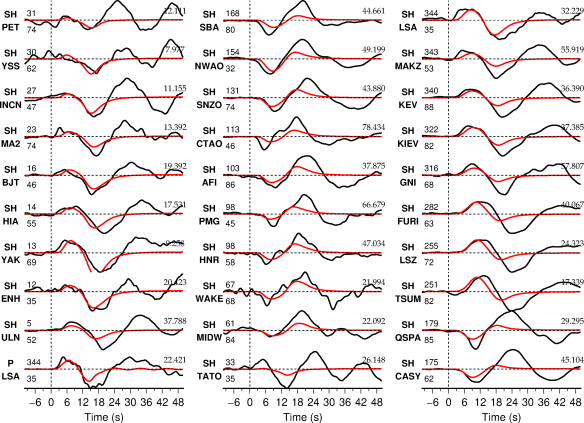

Waveform Fitting (Body-waves)

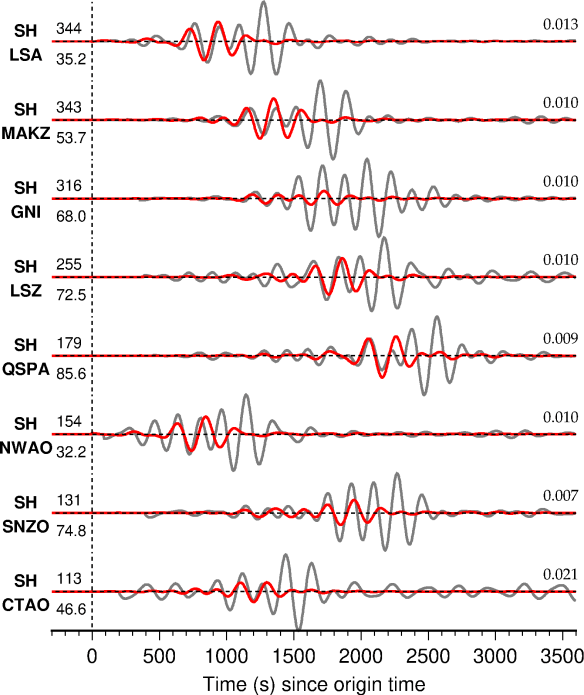

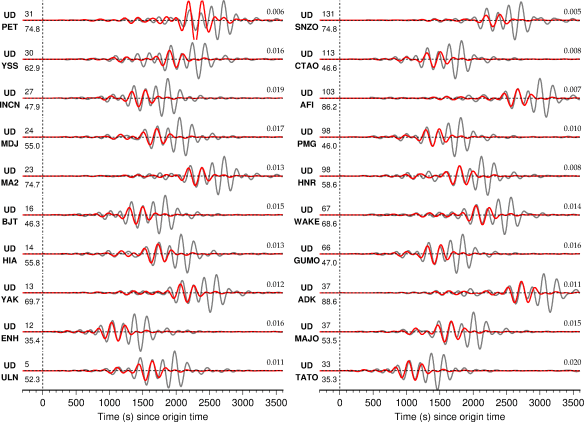

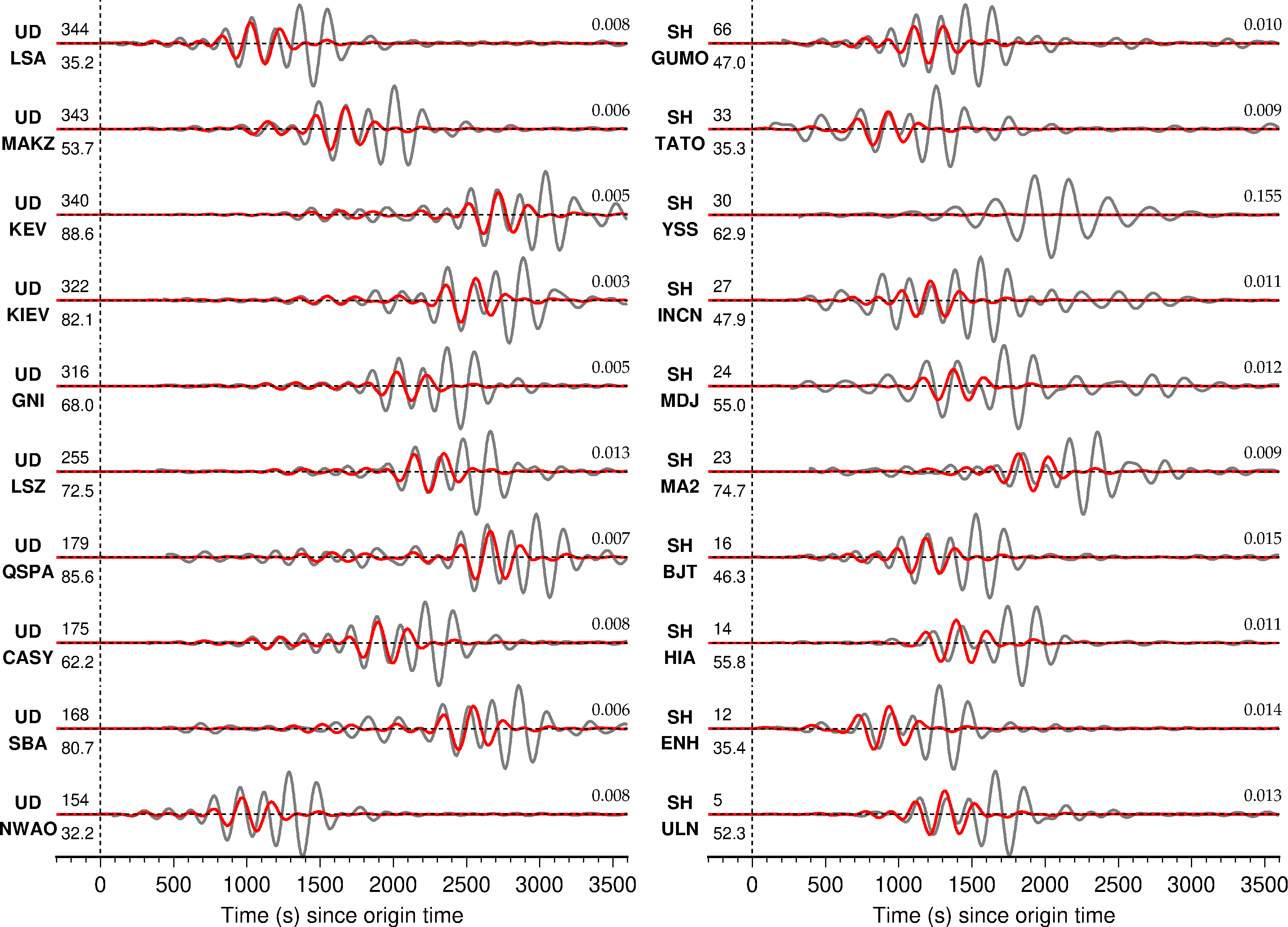

Waveform Fitting (Surface-waves) — mixed between the first and second event



Still working with the 2nd Event…
